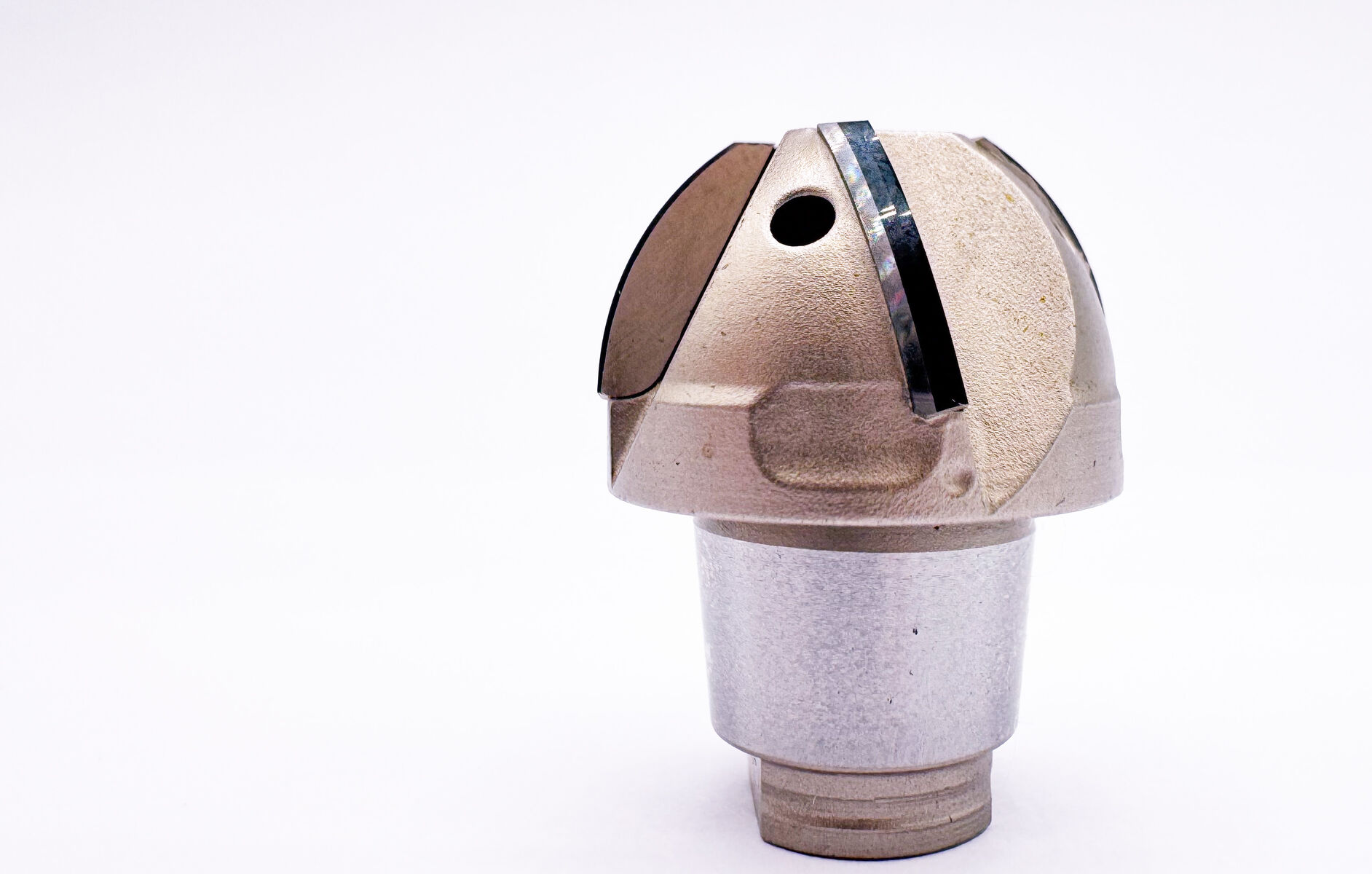

PCBN Ball Nose Cutter with K-land Machining: VGrind Infinity Linear

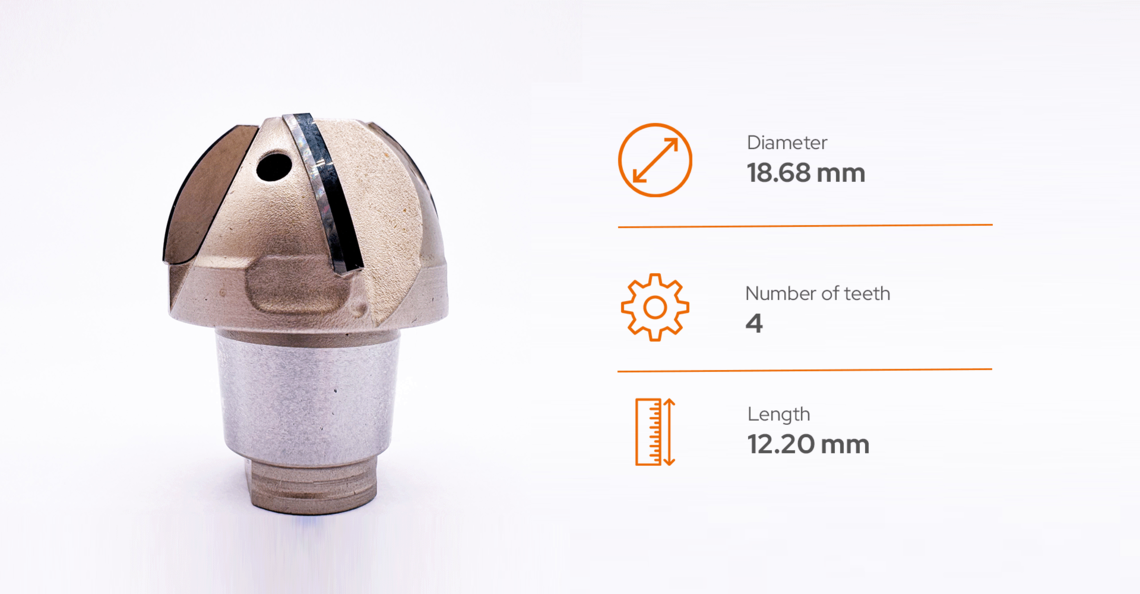

Tool characteristics

  • Negative chamfer

  • Brazed PCBN plates

  • Changeable milling head



The challenge

  • Extremely hard cutting material, resulting in high demands on process stability ​

  • Blanks differ due to brazed-in PCBN plates​

  • The negative chamfer requires a high degree of precision ​

The VOLLMER Solution: VGrind infinity linear

  • Excellent thermal and mechanical stability ​

  • Automatic dressing of the grinding wheel during the process​

  • Laser measurement system to enhance process stability ​

  • Measurement strategy for automatically determining the position of the plates



VOLLMER VGrind Infinity Linear carbide grinding machine


 VGrind Infinity linear
