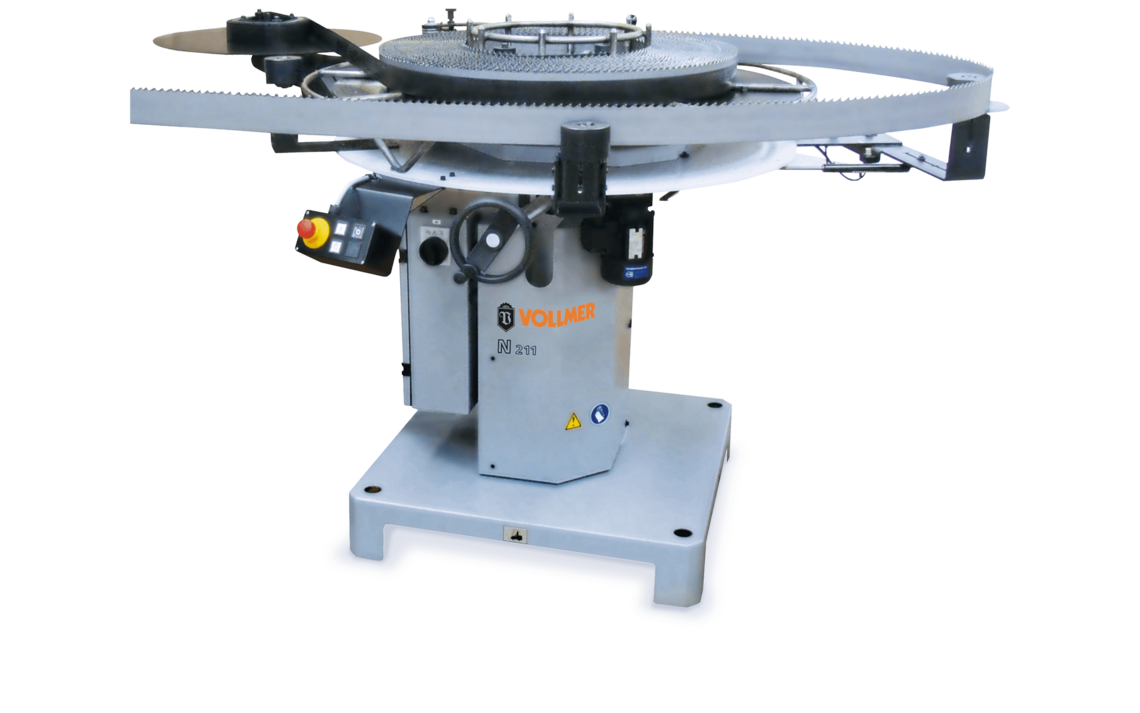

N211 coiling device for winding and unwinding band saws
Blade width: 12 to 80 mm Blade thickness: Up to 2 mm Workpiece weight: Up to 250 kg Coil with winding diameter: 300 to 1300 mm (300 to 900 mm with Vollmer loading wheel) Operating speed: 1.1 m/min. to 2 m/min. Loading wheel speed: = 0.72 rpm Adjustable height of the loading wheel: 890 to 1150 mm

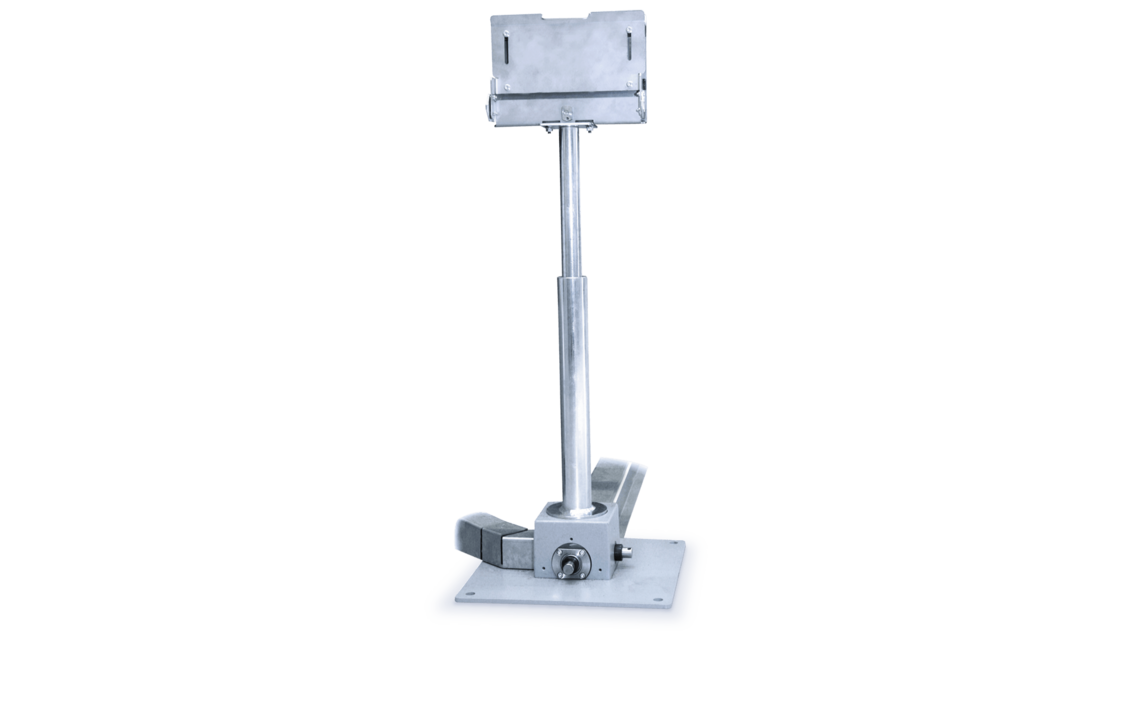

N200 saw support frame for band saws
Saw support frame for guiding heavy band saws.
Blade width: 100 to 420 mm Blade thickness: < 5 mm
