CC 355 Production system for sharpening tooth faces, tooth tops and side angles

THREE MACHINING STATIONS

THREE MACHINING STATIONS

Tooth faces/tooth tops and side angles – variable machining sequence

COMPACT DESIGN

COMPACT DESIGN

Compared to similar production systems, the CC 355 requires very little space

CONVENIENT OPERATION

CONVENIENT OPERATION

Concise symbols and descriptive graphics ensure optimum user guidance, and help you to easily and efficiently achieve your objectives

INTERNAL HANDLING

INTERNAL HANDLING

With four handling mechanisms for automatic transfer of the circular saw blades

EXTERNAL HANDLING SYSTEM

EXTERNAL HANDLING SYSTEM

For perfect loading and feeding

NEW OPERATING CONCEPT

NEW OPERATING CONCEPT

Moveable control panel for optimum working at the individual stations

THREE MACHINING STATIONS

THREE MACHINING STATIONS

Tooth faces/tooth tops and side angles – variable machining sequence

THREE MACHINING STATIONS

THREE MACHINING STATIONS

Tooth faces/tooth tops and side angles – variable machining sequence

EXTERNAL HANDLING SYSTEM

EXTERNAL HANDLING SYSTEM

For perfect loading and feeding

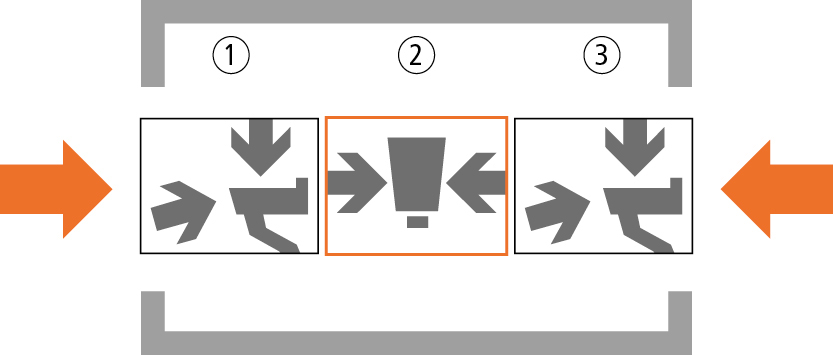

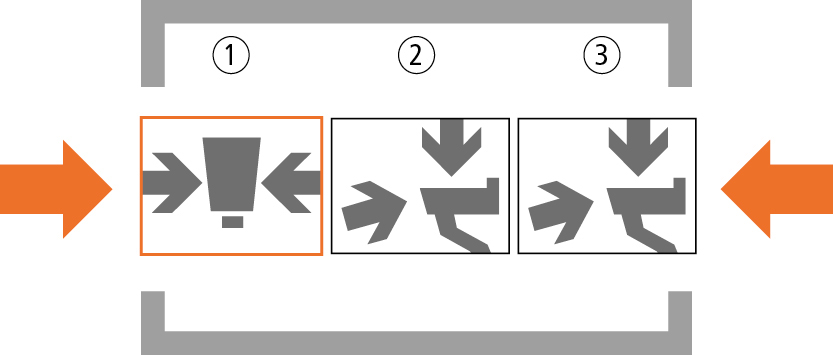

FLEXIBLE MACHINING DIRECTION

Loading and machining the workpieces from both sides. Fitted with two stations for tooth face and tooth top machining and one station for side angle machining.

The side angle can be machined on either station 1 or station 2.

INTELLIGENT: THE MACHINE CONCEPT

The new VOLLMER CC 355 intelligently combines three machining stations and is therefore ideally equipped for the fast and flexible manufacture of wood cutting tools in large batches.

  • Production system with the three machining stations for tooth face/tooth top and side angle
  • The machine design and machining sequence are variable
  • Total of 17 CNC axes for machining all known tooth geometries in one cycle
  • Internal handling system for fast, reliable workpiece transfer
  • You can choose the positioning of the unmachined part stacks (left or right) and direction of the machine sequence

THE OPERATING CONCEPT

As flexible as you: The newly developed operating concept of the VOLLMER CC 355 guarantees a perfect overview and optimum handling at every machining station.

  • Movable control panel follows the user from station to station
  • After engaging in the new machining position, automatic switchover to next work operation
  • The compact external handling system takes care of loading
  • Usual simple, intuitive VOLLMER Windows-based operation

CC 355 – YOUR MAIN ADVANTAGES AT A GLANCE:

  • INCREASED PRODUCTIVITY
    Optimized for large batches – machining to the VOLLMER quality. Keeping you on the road to success.
  • INCREASED MACHINING CONVENIENCE
    New movable control unit for the best ergonomics while working at every station. Making efficiency enjoyable!
  • INCREASED FLEXIBILITY
    All known tooth geometries in one cycle: You are free to choose the machining sequence and direction. This means that you are prepared for everything.

VOLLMER CC 355 Production system

CC355
WORKPIECE DATA
CIRCULAR SAW BLADES
Circular saw blades with outside diameter150 - 355 mm
Circular saw blades with bore diameter≤ 50 mm
Circular saw blades with blade thickness≤ 3,5 mm
TOOTH GEOMETRY
Tangential clearance angle0° - +8°
Radial clearance angle0° - +6°
Axis angle≤ 15°
Clearance angle+8° - +25°
Bevel angle≤ 45°
Tooth pitch6 - 100 mm
WORKPIECE HOLDING FIXTURE
Workpiece weight< 3,5 kg
WORKPIECE HANDLING
Stack height< 300 mm
INTERFACES
Electrical connected load9,4 kVA

Download

CC 355
CC 355
Brochure

Your contact

VOLLMER OF AMERICA CORP.
Address105 Broadway Avenue
Carnegie, PA 15106
